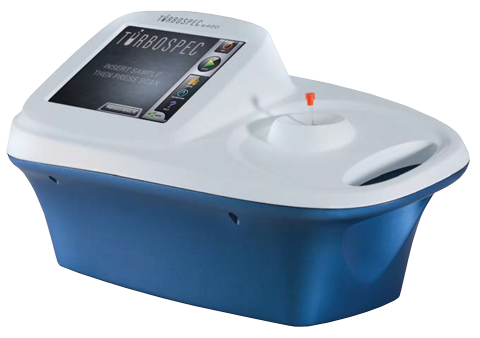

The Turbospec e400 table-top analyzer is your go-to solution for accurately measuring solute concentrations in liquids.
Using mini Magnetic Resonance sensors and patented methods, it’s a reliable choice for labs and operations looking for quick, accurate results. The Turbospec e400 is not only efficient but also user-friendly and easy to use, thanks to Turbospec LLC’s proprietary technology and simple interface.
Revolutionizing Elemental Analysis with the Turbospec e400 Portable Analyzer
The plug-and-play Turbospec e400 provides a simple and highly intuitive user interface to determine the concentration of a selected element in seconds.
The Turbospec’s advanced and patented technology allows you to conduct precise analyses and quality control for diverse samples such as brines, broths, sauces, and saline solutions. The Turbospec e400 ensures accurate measurements for elements like Sodium, Lithium, Boron, Fluorine, Phosphorus, Aluminum, and more. It also offers product configurations that can measure the concentration of up to four elements per unit.

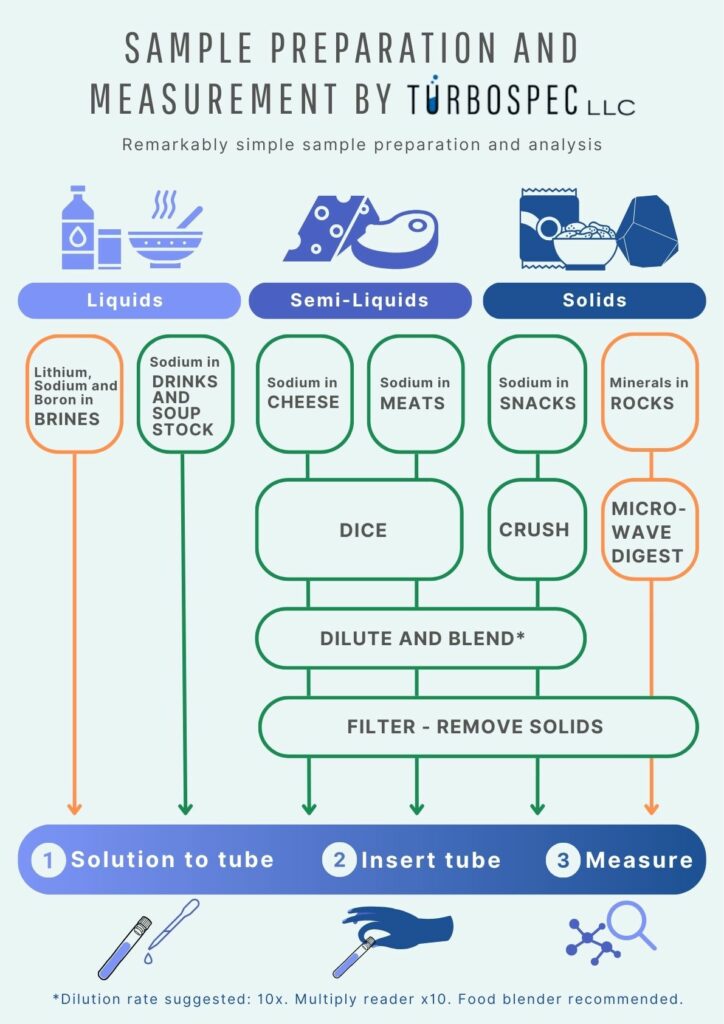

Remarkably Simple Sample Preparation
Liquid samples such as brines and broths require no preparation. Just pipette into a standard 5 mm tube and measure in seconds.
For solid samples, water is typically used to extract the element of interest. The results are not affected by interference from other elements in the solution, eliminating the need for sample dilution and extensive filtering.
Turbospec’s Outstanding Technology
Designed to provide rapid, accurate results, the Turbospec e400 analyzer uses compact Magnetic Resonance technology to deliver reliable analysis in a portable package.
Turbospec’s revolutionary approach blends proprietary product technology with an optimized user interface to support superior analysis capabilities.
Unmatched Elemental Analysis
The Turbospec e400 elemental analyzer uses a robust, novel method and auto-tuned measurements to quantify the number of atoms per unit of volume in solution.
The Magnetic Resonance technology for analysis is matched with a convenient user interface and requires minimal to no sample preparation time. Using a single-point calibration, users can calibrate the analyzer in under one minute.
The Turbospec Solution: What Makes Our Product Stand Out?
Analytical laboratories and QC operators are seeking to optimize chemical processes, improve control standards, and deliver reliable testing in a wide range of environments.
Turbospec can meet analytical needs by leveraging a deep understanding of Magnetic Resonance, creating a rapid and highly accurate testing device. The result is an analyzer that is portable, easy to maintain, and straightforward to operate.
Turbospec’s patented innovative technology provides analytical solutions typically only offered by superconductor-based Magnetic Resonance instruments or by less practical and less effective methodologies.
It puts complex analysis capabilities in a compact package while maintaining the integrity of the testing and improving efficiencies.
Turbospec e400 does not require cryogenic cooling and no consumables are needed. The product highly simplifies the need for operational training and has extremely low maintenance costs.
Why You Should Trust the Turbospec e400
- SPEED. Produce accurate measurements of element concentration in seconds, with virtually no sample preparation.
- ACCURACY. The Turbospec e400 uses leading Magnetic Resonance technology to provide high accuracy, and reliable elemental analysis in a much shorter time-frame than has ever been available before.
- PORTABILITY. The Turbospec e400 is designed to go where you go, the table-top Turbospec e400 provides accurate results in varied environments. It dramatically increases sampling efficiencies for applications that require highly sensitive testing.
- USER-FRIENDLY. The Turbospec e400 masks complex and effective elemental analysis behind a simple user interface.
- EASY TO USE. Minimal training is required for even non-specialists to successfully operate the device. The plug-and-play Turbospec e400 also requires minimal upkeep.
- CONFIGURATION. Turbospec e400 tests a single element or multiple operator-selected elements: Lithium, Boron, Fluorine, Sodium, Phosphorus, and many others to obtain accurate, on-site analysis remarkably fast.
- RETURN ON INVESTMENT. Fast ROI as there are no consumable chemicals needed.
Turbospec e400 is the instrument of choice for lithium testing
in the brine mines of South America.
Product Specifications
- Size: 48 cm width, 25 cm height, 25 cm depth
- Weight: 8.3 Kg
- Power: input 10 to 28 V DC at 5 A. 110-240 V AC transformer and power cord included
- Temperature of Operation: 10 C – 45 C
- RFB Radio-Frequency Controller: single channel broadband ADC reprogrammable system
- Connectivity: USB and Ethernet
- Remote access: remote login via internet
- Magnet: ultra-compact high homogeneity permanent magnet array with passive shielding for stray fields
- Touch Screen: 8″ TFT Full VGA high-brightness LCD
- Cooling: air cooling, fan in back panel
- User Interface: Graphical User Interface with intuitive operation
- Sample Vial: glass test tube, 5 mm outside diameter, 100 mm length or longer
The Science Behind Turbospec e400
Turbospec LLC uses proprietary quantitative NMR methods to rapidly and accurately determine the concentration of elements in a solution. The base technology is broadly used in clinical MRI and analytical chemistry. In the Turbospec e400, samples are placed in the strong magnetic field of a compact, permanent magnet.
NMR signals are then generated as a response to a series of controlled radio-frequency pulses. The signals penetrate the solution to observe selected atoms – therefore samples don’t need to be filtered or diluted. Proprietary quantitative NMR methods are used to provide fast, accurate and repeatable results.
Get to know more about the technology behind the Turbospec e400.
Comparative Matrix
In the table below, you can compare different parameters such as portability, speed and ROI amongst different chemical analyzing methods.
Contact Us
Turbospec LLC is already helping industries around the world such as the food and mining industries. Contact us today by filling out this form.
